Project: Arduino Nano 33 IoT – Salesforce Integration for Temperature Monitoring

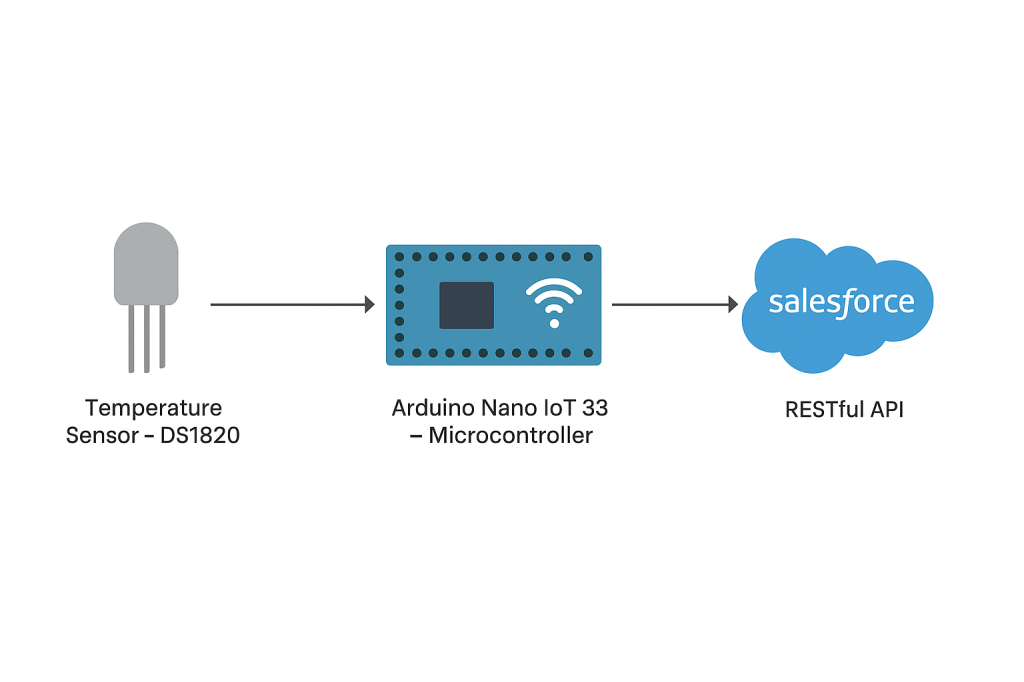

The primary objective of this project is to establish a seamless integration between an Arduino Nano 33 IoT microcontroller and Salesforce CRM. The Arduino device will capture real-time temperature data and transmit it securely to Salesforce using a Connected App. Temperature values will be stored in a custom Salesforce object (Temprature__c), updated automatically at one-minute intervals. Arduino makes a REST Call to Salesforce and sends back success or failure. On success the code would create a record in salesforce of the current temperature sensor in C.
Hardware: Arduino Nano IOT 33 – Microcontroller, Temperature Sensor – DS18B20 ( Many versions are available on Ebay/Amazon, Breadboard, Connecting wires
Software: Arduino IDE, Libraries for DS18B20, Salesforce – with Admin access or developer Sandbox.
Salesforce Setup:
- Create a connected App (As of Summer’25): Setup>App Manager> Click Button “New External Client App” – Setup Oauth credentials
- Test connection with Postman if necessary.
Hardware Connection/Setup:

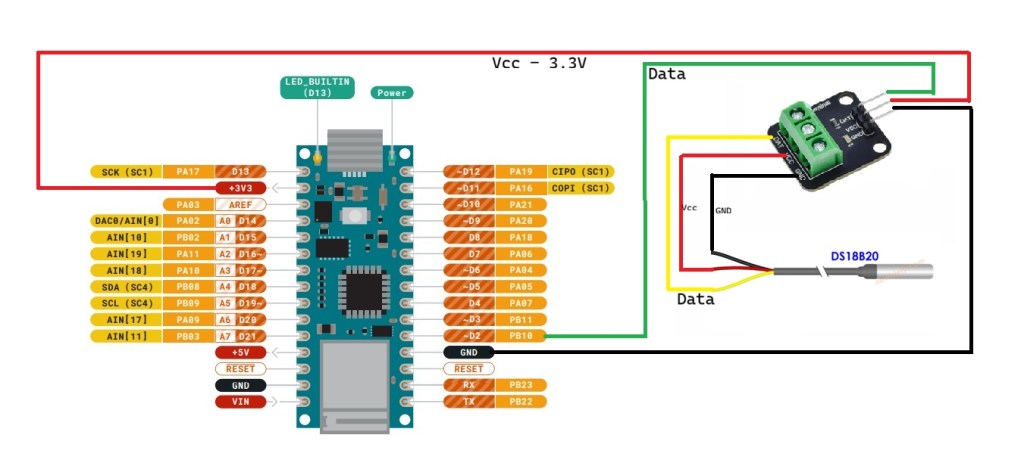

DS18B20 to Arduino Nano 33
We can power DS18B20 using Vcc ( Vout) = 3.3 from Arduino as it consumes less than 50mA. If using a different power supply do not forget to connect grounds together else the results will be unpredictable,
Arduino Code: Here is the code for the project. You can use any other sensor to update salesforce. I had to use the credential flow instead of device flow as I had issues with it. Credential flows are not very safe!
/*
* Author: Aadi Yemul
* Location: Redmond, WA
* Date: September 3, 2024
*
* Purpose:
* This program connects an Arduino Nano 33 IoT to Salesforce via a Connected App.
* It captures temperature readings from a DS18B20 sensor and updates them
* in a Salesforce custom object (Temperature__c) every minute over Wi-Fi.
*
* The program handles:
* - Wi-Fi connection
* - OAuth2 authentication with Salesforce
* - Automatic data posting to Salesforce REST API
* - Retry logic for network or authentication failures
*/
#include <SPI.h>
#include <WiFiNINA.h>
#include <ArduinoHttpClient.h>
#include <ArduinoJson.h>
#include <OneWire.h>
#include <DallasTemperature.h>
#define SENSOR_PIN 2 // The Arduino Nano 33 IoT pin D2 connected to DS18B20 sensor's DATA pin
OneWire oneWire(SENSOR_PIN);
DallasTemperature DS18B20(&oneWire);
float temperature_C; // temperature in Celsius
float temperature_F; // temperature in Fahrenheit
// ---------------- WiFi Credentials ----------------
char ssid[] = "YOUR_WIFI_SSID"; // Replace with your WiFi SSID
char pass[] = "YOUR_WIFI_PASSWORD"; // Replace with your WiFi Password
// ---------------- Salesforce OAuth Credentials ----------------
const char* sf_host = "YOUR_SF_DOMAIN.my.salesforce.com";
String client_id = "YOUR_CONNECTED_APP_CLIENT_ID";
String client_secret = "YOUR_CONNECTED_APP_CLIENT_SECRET";
String username = "YOUR_SF_USERNAME";
String password = "YOUR_SF_PASSWORD+SECURITY_TOKEN"; // password + token
// ---------------- Global Variables ----------------
String accessToken;
String instanceHost;
unsigned long lastAttemptTime = 0;
const unsigned long retryInterval = 60000; // 1 min
// ---------------- Network Clients ----------------
WiFiSSLClient wifi;
HttpClient client(wifi, sf_host, 443);
// ==================================================
// Function: getAccessToken
// Purpose: Logs into Salesforce via OAuth2
// ==================================================
void getAccessToken() {
Serial.println("Requesting Salesforce Access Token...");
String postData = "grant_type=password";
postData += "&client_id=" + client_id;
postData += "&client_secret=" + client_secret;
postData += "&username=" + username;
postData += "&password=" + password;
client.beginRequest();
client.post("/services/oauth2/token");
client.sendHeader("Content-Type", "application/x-www-form-urlencoded");
client.sendHeader("Content-Length", postData.length());
client.beginBody();
client.print(postData);
client.endRequest();
int statusCode = client.responseStatusCode();
String response = client.responseBody();
Serial.println("Status: " + String(statusCode));
Serial.println("Response: " + response);
StaticJsonDocument<1024> doc;
DeserializationError error = deserializeJson(doc, response);
if (error) {
Serial.println("JSON parse failed!");
return;
}
accessToken = doc["access_token"].as<String>();
String instanceUrl = doc["instance_url"].as<String>();
int start = instanceUrl.indexOf("//") + 2;
instanceHost = instanceUrl.substring(start);
}
// ==================================================
// Function: createTemperatureEntry
// Purpose: Creates a new Temperature__c record in Salesforce
// ==================================================
bool createTemperatureEntry() {
if (instanceHost.length() == 0) {
Serial.println("No instance host available!");
return false;
}
HttpClient apiClient(wifi, instanceHost.c_str(), 443);
String endpoint = "/services/data/v58.0/sobjects/Temperature__c/";
//Custom object API name. remember two underscores __C
StaticJsonDocument<200> doc;
DS18B20.requestTemperatures(); // send the command to get temperatures
temperature_C = DS18B20.getTempCByIndex(0);
doc["Name"] = "Arduino Nano 33 IoT";
doc["Current_Temperature__c"] = temperature_C;
String jsonBody;
serializeJson(doc, jsonBody);
apiClient.beginRequest();
apiClient.post(endpoint);
apiClient.sendHeader("Content-Type", "application/json");
apiClient.sendHeader("Authorization", "Bearer " + accessToken);
apiClient.sendHeader("Content-Length", jsonBody.length());
apiClient.beginBody();
apiClient.print(jsonBody);
apiClient.endRequest();
int statusCode = apiClient.responseStatusCode();
String response = apiClient.responseBody();
Serial.print("Status: ");
Serial.println(statusCode);
Serial.print("Response: ");
Serial.println(response);
return (statusCode == 201);
}
// ==================================================
// Setup Function
// ==================================================
void setup() {
Serial.begin(115200);
while (!Serial);
DS18B20.begin();
Serial.print("Connecting to WiFi...");
while (WiFi.begin(ssid, pass) != WL_CONNECTED) {
delay(1000);
Serial.print(".");
}
Serial.println("Connected!");
getAccessToken();
if (accessToken.length() > 0) {
if (!createTemperatureEntry()) {
Serial.println("Initial create failed, will retry in 1 minute...");
}
} else {
Serial.println("Failed to get Access Token at startup.");
}
lastAttemptTime = millis();
}
// ==================================================
// Loop Function (retry logic every 1 min)
// ==================================================
void loop() {
if (millis() - lastAttemptTime >= retryInterval) {
lastAttemptTime = millis();
if (WiFi.status() != WL_CONNECTED) {
Serial.println("WiFi disconnected, reconnecting...");
while (WiFi.begin(ssid, pass) != WL_CONNECTED) {
delay(1000);
Serial.print(".");
}
Serial.println("Reconnected!");
}
if (accessToken.length() > 0) {
Serial.println("Retrying Salesforce temperature entry...");
if (!createTemperatureEntry()) {
Serial.println("Retry failed. Will try again in 1 minute...");
}
} else {
Serial.println("No access token available. Trying to fetch again...");
getAccessToken();
}
}
}

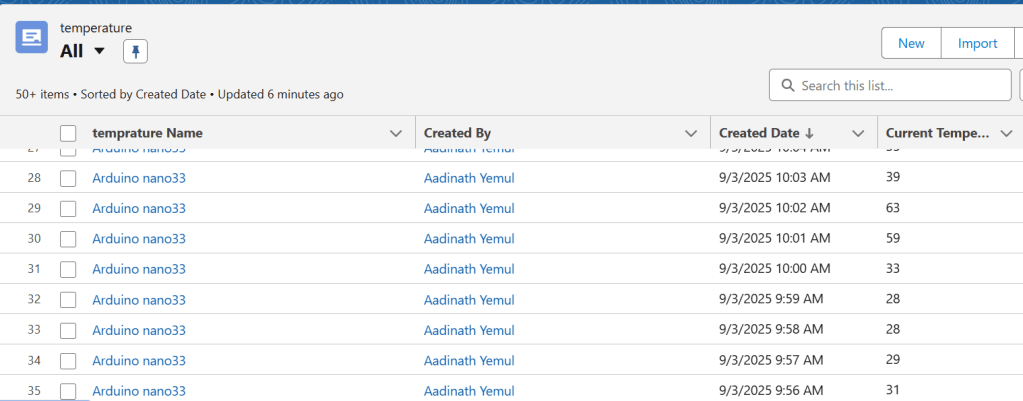

Output: You can use a list view or a report to look at your output.
